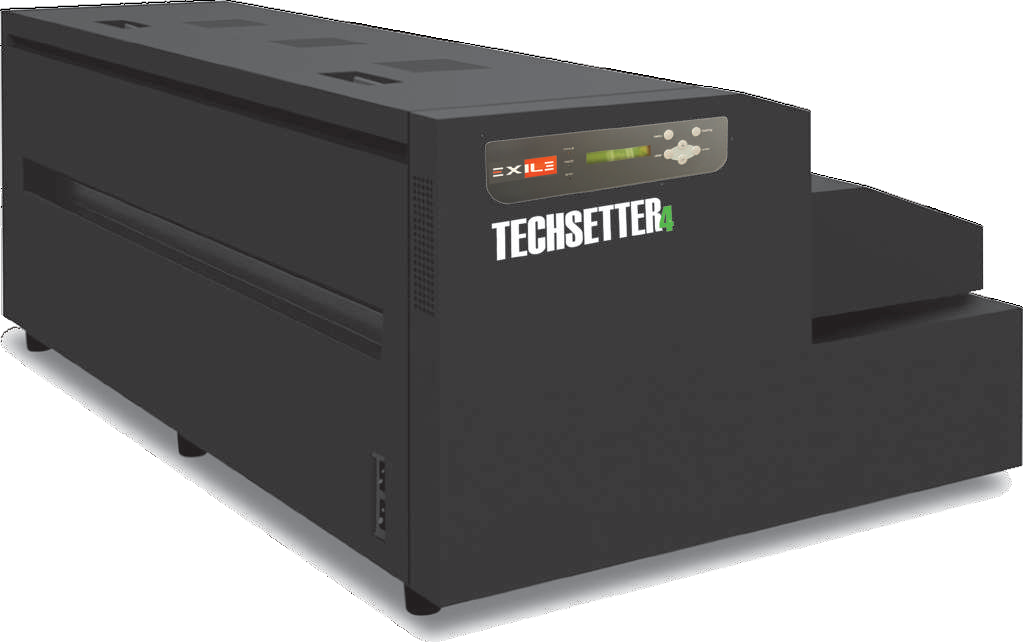

Techsetter4
TECHSETTER 4 has been designed to be a larger version of the popular TECHSETTER 2 Thermal Film Imagesetter.
With a ʻbest in classʼ 1204dpi printhead, the TECHSETTER 4 offers the sharpest and fastest image quality available for a dry film thermal imaging system.
The TECHSETTER 4 is easy and cost-effective to maintain, with no processor maintenance and no chemical disposal.
BENEFITS
Environmentally friendly
No ink, toner or chemicals
Ultra-fast imaging speed
Longer printhead life
70 square feet per hour
1200 dpi & excellent dot quality
Dry film imaging ensures clean dot
Formation & sharp line reproduction
With minimal dot gain, ideal for
Halftone work
Thermoimpression film
Clear graphic arts film that delivers outstanding registration accuracy & solid blacks with a DMAX exceeding
4.0 UV density
Dimensions
TECHSetter4 – 584 mm x 988 mm x 407 mm | Weight: 98 kg
CLEAN & CLEAR ALTERNATIVE FOR FILM PRODUCTION
Eliminate the hassle of traditional film imaging and processing with the chemical-free TECHSETTER 4 Imagesetter from EXILE Technologies. The TECHSETTER 4 is the newest model in EXILEʼs Thermal Imagesetter line-up.
This turnkey system enables you to image graphic arts films that are ideal for screen printing, engraving, rubber stamp printing, narrow flexo web, letterpress & envelope printing and many other applications.
Title
Title
Title
SPECIFICATIONS
EQUIPMENT SPECIFICATIONS
Model: TECHSETTER4 Imagesetter
Resolution: 1204 dpi (up to 133 lpi)
Max Image Area: 60.5 cm x 190 cm)
14 in x 48 in (35.5 cm x 121 cm) optional purchase
Image Speed: 50 linear cms per minute
Voltage: AC 90/264V Auto Sensing
Temperature: Storage/Shipping 14°F – 158°F (-10° – 70°C)
Operating 60°F – 85°F (15°C – 30°C)
Humidity: 50% to 70% relative humidity
Dimensions: 23 in (584 mm) x 39 in (988 mm) x 16 in (407 mm)
Weight: 218 lbs (98 kg)
Operating System: Windows 10 or higher
Software: Tiff Print Utility. Optional Harlequin® RIP or SCREENMAKER or STUDIO RIP
Data Formats: 1 bit TIFF plus Postscript, PDF, EPS & JPG via optional RIP software
Length Accuracy: ±0.01%
Media: Thermoimpression film 14.25 in x 200 ft (36 cm x 61 m)
